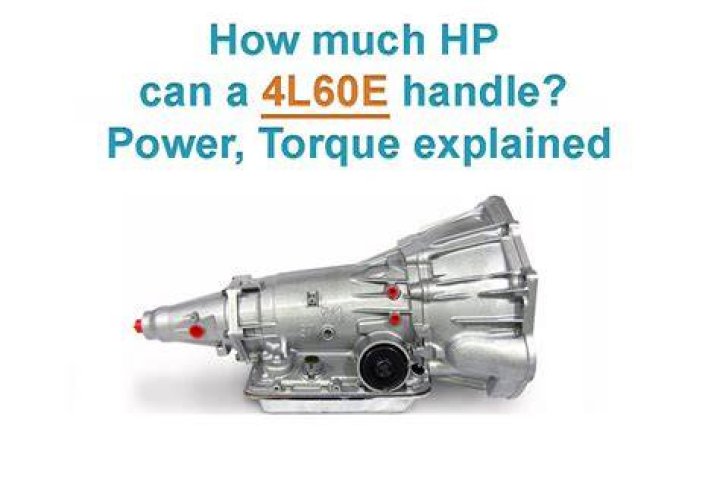

How much HP can stock 4L60E handle?
A well built 4l60e can handle some serious power. We have cars running 500-600 and 700 rwhp as the power increases of course the odds of failure do increase but we have had very good results. Generally a stock rebuild is not adequate for much more than general bolt ons however.Can a 4L60E handle 500hp?
We found a used 4L60E out of a small-block Chevy-powered 1999 van for $200 and decided on a budget upgrade to handle roughly 500 hp. This decision was shaped by the knowledge there are lots of performance upgrade parts from Sonnax and TCI Automotive.Can a 4L60E handle 1000HP?
supports up to +1000HP.Can you put 6.0 on 4L60E?
Registered. Since you already have a 99-2000 6.0L (they had iron heads) it will bolt right up to the earlier 4l60E.Can you bulletproof a 4L60E transmission?
First of theres no such thing as bullet proofing a 4l60e. If you want bullet proof i would build a 4l80e .How much power can a 5.3 Vortec handle?
ANSWER
| Gen III 5.3L “Vortec” Stock Rated-Output (SAE J1349) | ||
|---|---|---|
| Model Year | Power (HP) | Torque (LB-FT) |
| 1999 | 270 hp | 315 lb-ft |
| 20002003 | 285 hp | 325 lb-ft |
| 20042007 | 295 hp | 335 lb-ft |
Oct 1, 2019
How can you tell the difference between a 4L60E and a 4L80E?
Appearance. The 4L80E can be told apart from the 4L60E by looking at their transmission fluid pan. This is because the 4L80E has a pan that is oval in shape whereas a rectangular pan is featured by the 4L60E. Another disparity between both devices is the number of bolts used to secure the transmission to the engine.Can you put a 4L60E in place of a 4L80E?
One bolt hole does not line up. A 4L80E converter is a different bolt pattern from a 4L60E. So even if you use a spacer, you need to have a converter with a 4L60E bolt pattern and a 4L80E pump end.What transmission does a 6.0 Vortec have?
All 6.0L Vortec engines are mated to GM’s 6L90 automatic transmission. The 6.0L Vortec features unique high flow cylinder heads with “cathedral” shaped intake ports and “D” shaped exhaust ports.How much HP will a stock 4L80E handle?
How much power can the 4L80E handle? A totally stock unit or rebuild will typically live well with up to 450 flywheel HP/TQ.What does 4L60E stand for?
The 4L60E Transmission is a series of automatic transmission from General Motors. Previously named the THM700, and later renamed to 4L60 to fit into GM’s new naming convention. The “E” stands for the electronically shift controlled version of the 4L60 automatic transmission.Which is better 700R4 or 4L60E?
If the transmission has a large 18-pin electronic connector above the passenger side pan rail, it’s a 4L60E, as seen here. If it has a cable connection near the cooler lines on the passenger’s side, that’s a 700R4. The good news is that either way, you win.Can a 4L80E handle 500hp?
The 4L80E in stock form would be limited by it’s direct clutches (3rd gear) and that would be a part that would gradually fail at ~500 HP if raced often but last years on the street at closer to 600 HP/TQ in a passenger car application. Other than that it would mostly depend on the year model and how it was used.How much HP can a 6l90e handle?
The 6L90 transmission is not a terrible transmission. In fact, it is a high-performance component capable of handling up to 700 horsepower.Can a 4L80E handle 1000hp?
Our PERFORMANCE 4L80E series is ideal for street/strip driving and upgrades from a 4L60E/4L65E platform. It’s rated at 1000 RWHP….How much HP can a 6L80E handle?
They feature custom nitrided steels to prevent warping, and more durable clutch linings that are more resistant to heat. With these modifications, a 6L80E can handle 500 to 600 rear-wheel horsepower in the typical street/strip application, although we have had customers push them all to the way to 1,000 hp.”Is there a non electronic 4L80?
The only logical transmission for our 4×4 was the 4L80E four-speed automatic transmission commonly found in 3/4- and 1-ton GM trucks and SUVs. … However, the 4L80E can be easily converted to a manually shifted valvebody, which eliminates the need for the computer and much of the electronics and wiring.Which transmission is better 4L60E or 4L80E?
Without a doubt the 4L80E is the more powerful of the two transmissions. Vehicles with powerful engines, such as big trucks for towing or high speed cars for racing, require a 4L80E rather than a 4L60E as the power of the engine is likely to break smaller, less powerful transmissions.Can you swap a 4l80 for a 6L80?
You need a motor with a 58X wheel to control the trans with factory parts, your existing 6L will not.What year did Chevy go to 6 speed transmission?
The 4 speed does not (4L60).How much does it cost to rebuild a 4L80E transmission?
A local transmission shop will rebuild a 4L60E for around $900 to $1,200 and a 4L80E for $1,300 to $1,800, with used units going for about $400 and $600 to $1,000, respectively.What years will a 4L60E transmission fit?
What years does 4L60E transmission fit?
| Year Ranges | Transmission | Pan/Filter |
|---|---|---|
| 1994-1996 | 4L60E | Shallow |
| 1997 | 4L60E | Shallow – Early Deep – Late |
| 1998-2000 | 4L60E | Deep |
| 2001-2003 | 4L60E/4L65E | Deep |
Apr 28, 2021
What did the 4L80 come in?
The 4L80-E (and similar 4L85-E) is a series of automatic transmissions from General Motors. Designed for longitudinal engine configurations, the series included 4 forward gears.
…
GM 4L80-E transmission.
| 4L80-E/4L85-E | |
|---|---|
| Overview | |
| Production | 1991–2013 |
| Body and chassis | |
| Class | 4-speed longitudinal automatic transmission |
