Can I use H amp for a fan?

So the short answer is yes, you can do that, the H_amp header. You should know that you are not going to get speed control with those fans, they will run at full speed. They are 3-pin fans and the 4th pin of a 4-pin fan is for the speed control. You can still connect the 3-pin fans to 4-pin headers though.

What is Cpu_out?

What is CPU OPT (CPU_OPT)? CPU_OPT, standing for “CPU Optional”, is mostly used when you have more than one fan on your cooler/radiator and you need someplace to plug it in. It’s basically CPU_FAN without the “not booting if nothing is connected to it” part.

How many amps is a fan header?

It is generally between 1amp to 1.3 amps. You can indeed connect multiple fans to a single header with a splitter but the splitter should only connect one of the yellow speed signal lines from a fan.

How much power can a fan header supply?

A fan header will supply aprox 0.8-1.2 A, which is usually sufficient topower 2 fans with a little headroom.

What is PCH fan connector?

The PCH fan is the small fan on the chipset of the board. No its not necessary you enable the fan control for this or for any OPT fans. If you want to be able to control the speeds of them using bios then enable. Otherwise no need to.

What is H amp fan?

It stands for High Amperage Fan. There should be a header (pins) on the motherboard for you to plug in multiple fans or fans that are higher current. H-Amp fans usually provide better cooling. The manual settings for your motherboard will allow you to set measure points and minimum/maximum temperatures, etc.

What is fan opt?

The phrase” OPT” stands for “Optional.” So that means the fan connected to this header is the optional cooling fan. Hence, your CPU does not need a fan connected to this header for working normally. That means, even if this header is empty, your device will run smoothly.

What is a Power fan?

A power fan is a cooling fan that uses electricity to blow air. They are often used in places where there is no air conditioning, such as a home office or a factory floor…. Power fans are also used to cool the air in an automobile during summer months.

What is CPU opt on Mobo?

CPU opt meaning is CPU optional. It is a header that is used to connect some type of wiring for a liquid cooling system. Once connected, you are able to control the speed of the fan from the motherboard. Most gaming motherboards are equipped with such CPU OPT for controlling the heat sink speed.

What does Cha fan 2 mean?

The Connectors labeled PWR_FAN1 and PWR_FAN2 are intended to be connected to a fan inside or attached to a power supply. The ones labeled CHA_FAN1, CHA_FAN2 are intended to be used with chassis fans at the top, front, bottom and/or back of your case.

What is AMP fan header?

Headers are usually 0.75 to 1 A at 12 V with some motherboards featuring a high current header rated at 3 A. Fans are usually rated at up to 0.25 A with many coming in at a lower current.

Do fan headers provide power?

Motherboard fan connectors provide fans the small amounts of power they need to keep spinning and, in some cases, offer user control of fan speed.

How many volts can a fan header take?

“ALL FAN HEADERS HAVE A MAXIMUM POWER LIMIT OF 2AMP @ 12 VOLTS (24WATTS). EXCEEDING THIS LIMIT WILL CAUSE IRREPARABLE DAMAGE TO THE BOARD.”

Can you put 3 fans on header?

Almost all common normal fans today pull from 0.1 to 0.25 A max, so three fans can be done on one header. IF you plan more than that, you need to find out for sure the max current spec for them and add them up – do not exceed 1 A. The earliest fan type that had lights in them are called LED fans.

How many amps can a motherboard fan header handle?

It is generally between 1amp to 1.3 amps. You can indeed connect multiple fans to a single header with a splitter but the splitter should only connect one of the yellow speed signal lines from a fan.

Can you plug a fan into any header?

Please Note: You can connect a 3 Pin Fan to a 3 Pin or 4 Pin header on the motherboard. The fan will function normally no matter type of fan header is used.

What is normal PCH fan speed?

Peak PCH rpm at 2600-2800rpm-ish. After session, CPU and chassis fans come back to 400-600rpm. PCH fan drops back to 1850-1900rpm.

What is a HS fan?

A heat sink and fan (HSF) is an active cooling solution used to cool down integrated circuits in computer systems, commonly the central processing unit (CPU). As the name suggests, it is composed of a passive cooling unit (the heat sink) and a fan.

Can I use M 2 fan for case fan?

Neither M. 2 nor the FanConnect headers should be used for case fans or CPU cooling. What you NEED to do is get a fan hub.

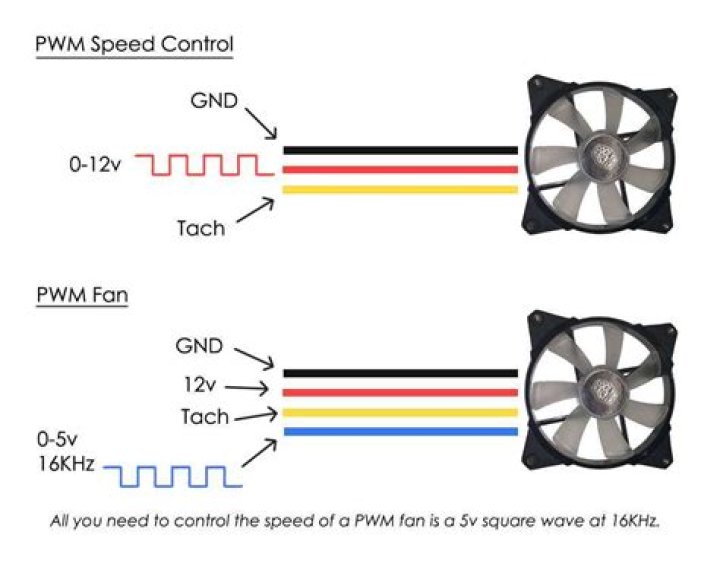

What is PWM PC fan?

Pulse width modulation (PWM) fans are DC fans with an extra wire for PWM. PWM fans are 4-pin fans where the fourth wire sends a PWM signal to the fan motor. The PWM signal is the control input of the PWM fan. The control input is usually an open-drain or open-collector output with a 5 V or 3.3 V pull-up.

What is fan opt on motherboard?

CPU_OPT, standing for “CPU Optional”, is mostly used when you have more than one fan on your cooler/radiator and you need someplace to plug it in. It’s basically CPU_FAN without the “not booting if nothing is connected to it” part.

Can I put a fan on CPU opt?

Can I Use CPU OPT for Case Fan? CPU fan header, CPU OPT, and SYS fan header, if all of them are 4 pin fan headers, the motherboard, and in turn the BIOS and the OS, can control the fans’ speed. therefore, theoretically, you can connect the case fan or one of the case fans to the CPU OPT without a problem.

What is PWR fan?

You are correct, the PWR fan header is strictly for the power supply fan.

What is power fan in CPU?

The power fan header (PWR_FAN) allows for monitoring the RPM of the PSU fan if the PSU has the appropriate wire to plug in to it, otherwise you just ignore it. It’s entirely optional anyway, even if the PSU does have the appropriate wire, It’s not necessary to connect anything to that header to have a working system.

What does cha fan mean motherboard?

In simple words, it cha fan is just a tiny fan between 10 cm and 200 cm attached to your computer’s CPU. You may come across the doubt of this fan, also named a case fan or chassis fan, while building or repairing the system yourself.

Can I use a power supply fan as a case fan?

So the quick answer is yes you can use fans from PSUs in your case. Bear in mind that most fans found in PSUs are cheap and noisy – and will need to have some work performed to fit them onto a molex header. Most old PSU’s have brushless fans unsuitable for long term reliable usage.

What is the difference between cha fan and CPU fan?

Basically, the fundamental difference between the System and the CPU fans is that the former is used for PC case/chassis ventilation where as the latter is used for the CPU cooling.

What does Cha_fan mean?

this refers to the fan plug/socket on your motherboard and it’s to plug a Chassis/case fan if you like. 0. C.

What is AMP fan?

It stands for High Amperage Fan. There should be a header (pins) on the board for you to plug in multiple fans or fans that are higher current.

What is a fan header?

Quite simply, Fan Headers are terminals found on your motherboard where you plug your many PC cooling fans. They operate and provide monitoring capability for the fans of your PC.

What is a high amp fan?

How much power can a fan header provide?

A fan header will supply aprox 0.8-1.2 A, which is usually sufficient topower 2 fans with a little headroom.

What is the function of fan headers?

The CPU fan header is for the CPU heatsink fan (or fans) only. The system senses the presence of this during startup, and controls the RPMs to regulate air flow as necessary. Connect the rear exhaust fan directly to the PSU using the Molex connectors (and adapters). Let it run at full speed for max hot air exhaust.

What is power fan header?

The power fan header (PWR_FAN) allows for monitoring the RPM of the PSU fan if the PSU has the appropriate wire to plug in to it, otherwise you just ignore it.

How many volts does a fan header have?

As far as I can tell, based on my mobo manual (Page 34 always), the only fan header that supports PWM is the CPU fan header, and the header supplies up to 12V to the CPU fan. The mobo supports 4 additional system fans in DC mode with an unspecified voltage.

What is PHC fan?

What is temperature interval in BIOS?

There is a setting called “Temperature Interval,” and this can go from 1 to 3, and it determines how many degrees on either side of the curve the fan can be sensitive to. It’s there to decrease abrupt changes in fan speed.

What is high amp fan?

What is a PC fan called?

Case fan – a fan on the side of a computer case, inside the case. It helps circulate air in the computer case and blow hotter air out of the case. CPU fan – a fan on top of a computer processor. It helps pull and blow hot air off the processor, helping keep it cooler.

What is the difference between a heatsink and a CPU fan?

The heatsink draws the heat away from the CPU, and the fan ensures a steady stream of air for the heatsink to pass the heat to. However, there is more to selecting a heatsink and fan than just looking for a good price or one that looks cool.
